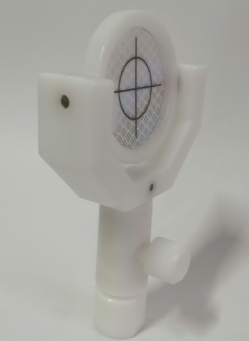

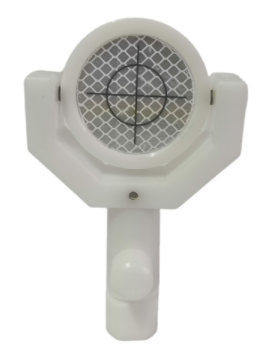

Reflective Sheet Mini Prism with Leica Adaptor White for Total Station
Model: ADSmini108-1
Specifications:
| Model | ADSmini108-1 |
| Holder Material | Plastic/ABS |
| Reflective Target | Plastic 3M |
| Holder Color | White |
| Sheeting Diameter | 50mm |
| Sheeting Type | Diamond Pattern Crosshair |
| Offset | 2mm |
| Height | 86mm |
| Thread | 5/8x11 female thread |
| Distance | 400m |
| Usage | Tunnel Monitoring |
Overview:
• Reflective sheet with cross hairs.
• Sheet diameter: 50mm.
• Prism offset: 2mm.
• Feature with Leica adapter.
Yellow color is also available.
When selecting a Surveying Prism, consider the offset, the thread size, and the size of the prism itself. When working with Total Stations that require a target or reflector, a Surveying Prism is a must-have.
Some Prisms are used on the top of a Prism Pole, while some are made to be mounted to the top of a Tripod.
Most Surveyors Prisms have a 5/8 x 11 thread size although some use adapters instead of threads such as the Leica / Swiss-type adapter.
Mini stake-out type prism is smaller in diameter which allows the user to get close to a wall or building to get the shot or stake out.
Monitoring Prisms are installed on structures such as buildings, tunnel walls, bridge piers, railroad tracks, or pavement. Changes in the positions of monitoring prisms indicate movement of the structure.
Control Prisms are installed at stable locations outside the zone of influence. Measurements of control prisms are used to adjust for changes in the position of the AMTS itself.
